产品描述
GYXTW 光缆的结构是将250μm光纤套入高模量材料制成的松套管中，松套管内填充防水化合物。松套管外用一层双面涂塑钢带（PSP）纵包，钢带和松套管之间加阻水材料以保证光缆的紧凑和纵向阻水，两侧放置两根平行钢丝后挤制聚乙烯护套成缆。
Product Description

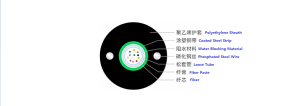

The structure of GYXTW optical cable is to insert 250 μ m optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. A layer of double-sided plastic coated steel strip (PSP) is wrapped longitudinally outside the loose tube, and a water-resistant material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the optical cable. Two parallel steel wires are placed on both sides and extruded into a polyethylene sheath to form the cable.
The structure of GYXTW optical cable is to insert 250 μ m optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. A layer of double-sided plastic coated steel strip (PSP) is wrapped longitudinally outside the loose tube, and a water-resistant material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the optical cable. Two parallel steel wires are placed on both sides and extruded into a polyethylene sheath to form the cable.
产品特点
1.具有很好的机械性能和温度特性
2.两根平行钢丝保证光缆的抗拉强度
3.松套管材料本身具有良好的耐水解性能和较高的强度
4.双面涂塑钢带(PSP)提高光缆抗侧压能力
5.管内充以特种油膏，对光纤进行了关键性保护
6.直径小、重量轻、容易敷设
Product Features
1. Has excellent mechanical properties and temperature characteristics
2. Two parallel steel wires ensure the tensile strength of the optical cable
3. The loose tube material itself has good hydrolysis resistance and high strength
4. Double sided coated steel strip (PSP) improves the lateral pressure resistance of optical cables
5. The tube is filled with special grease to provide critical protection for the optical fiber
6. Small diameter, light weight, easy to lay
1. Has excellent mechanical properties and temperature characteristics
2. Two parallel steel wires ensure the tensile strength of the optical cable
3. The loose tube material itself has good hydrolysis resistance and high strength
4. Double sided coated steel strip (PSP) improves the lateral pressure resistance of optical cables
5. The tube is filled with special grease to provide critical protection for the optical fiber
6. Small diameter, light weight, easy to lay
产品标准
符合 YD/T 769 等标准
运输/储存/使用温度-40℃至+70℃
Product standards
Compliant with YD/T 769 and other standards
Transportation/storage/use temperature -40 ℃ to+70 ℃
Compliant with YD/T 769 and other standards
Transportation/storage/use temperature -40 ℃ to+70 ℃
