产品描述
GYTS04 光缆的结构是将250um光纤套入高模量材料制成的松套管中，松套管内填充防水化合物。缆芯的中心是一根金属加强芯，对于某些芯数的光缆来说，金属加强芯外还需挤上一层聚乙烯（PE）。松套管（和填充绳）围绕中心加强芯绞合成紧凑和圆形的缆芯，缆芯内的缝隙充以阻水填充物。涂塑钢带（PSP）纵包后挤一层聚乙烯内护套后挤制尼龙护套成缆。
Product Description

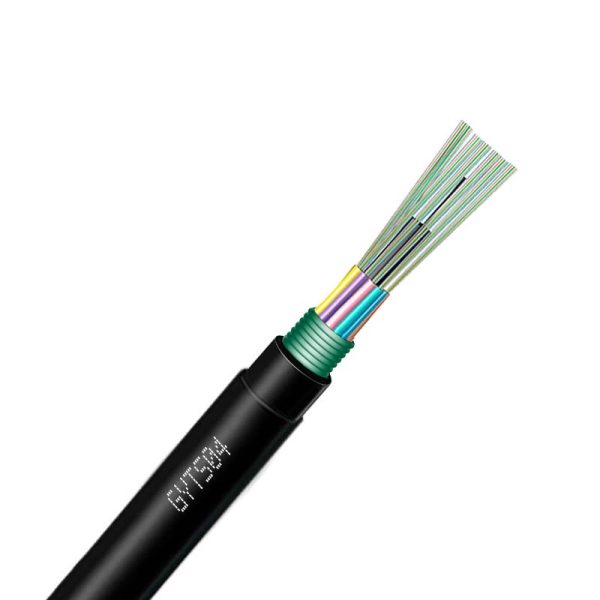

The structure of GYTS04 optical cable is to insert 250um optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The center of the cable core is a metal reinforced core, and for some fiber optic cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcement core to form a compact and circular cable core, and the gaps inside the cable core are filled with water-resistant filling material. After wrapping the PSP steel strip longitudinally, a layer of polyethylene inner sheath is extruded and then a nylon sheath is extruded to form the cable.
The structure of GYTS04 optical cable is to insert 250um optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The center of the cable core is a metal reinforced core, and for some fiber optic cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcement core to form a compact and circular cable core, and the gaps inside the cable core are filled with water-resistant filling material. After wrapping the PSP steel strip longitudinally, a layer of polyethylene inner sheath is extruded and then a nylon sheath is extruded to form the cable.
产品特点
1.套管内部填充缓冲油膏，既保护光纤又起到防水作用
2.精确控制光纤的余长保证了光缆具有很好的抗拉性能和温度特性
3.光滑的外护套使光缆在安装中可以有更小的摩擦系数
4.尼龙护套具有较高的强度、刚性、和良好的韧性及耐磨性，良好的防鼠材料
5.钢带纵包，具有很好抗侧压性能
Product Features
1. Fill the inside of the sleeve with buffer grease, which not only protects the optical fiber but also has a waterproof effect
2. Precise control of the remaining length of the optical fiber ensures that the cable has good tensile performance and temperature characteristics
3. The smooth outer sheath allows the optical cable to have a smaller coefficient of friction during installation
4. Nylon sheath has high strength, rigidity, good toughness and wear resistance, and is a good anti rodent material
5. Steel strip longitudinal wrapping, with excellent resistance to lateral pressure performance
1. Fill the inside of the sleeve with buffer grease, which not only protects the optical fiber but also has a waterproof effect
2. Precise control of the remaining length of the optical fiber ensures that the cable has good tensile performance and temperature characteristics
3. The smooth outer sheath allows the optical cable to have a smaller coefficient of friction during installation
4. Nylon sheath has high strength, rigidity, good toughness and wear resistance, and is a good anti rodent material
5. Steel strip longitudinal wrapping, with excellent resistance to lateral pressure performance
产品标准
符合 YD/T 901和IEC 60794-1 等标准
运输/储存/使用温度-40℃至+70℃
Product standards
Compliant with YD/T 901 and IEC 60794-1 standards
Transportation/storage/use temperature -40 ℃ to+70 ℃
Compliant with YD/T 901 and IEC 60794-1 standards
Transportation/storage/use temperature -40 ℃ to+70 ℃
